Vue中使用Openlayer实现加载动画效果

JavaScript
2022-04-15 0 397

注意：实现动画时不能有scoped！！！！

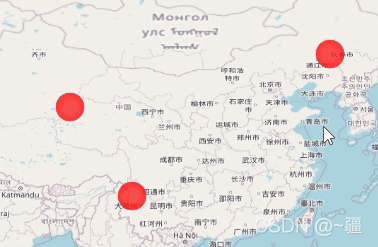

通过gif

Vue中使用Openlayer实现加载动画效果

<template>
  <div class="test">
    <div id="map" ref="map" style="width: 100vw; height: 100vh"></div>
  </div>
</template>

<script>
import "ol/ol.css";
import { Map, View, Overlay } from "ol";
import TileLayer from "ol/layer/Tile";
import OSM from "ol/source/OSM";

export default {
  name: "gif",
  data() {
    return {
      map: {},
      overlay: {},
      markerPoint: {},
      geojsonData: {
        type: "FeatureCollection",
        features: [
          {
            type: "Feature",
            properties: {
              title: "警报1",
            },
            geometry: {
              type: "Point",
              coordinates: [91.48879670091165, 37.83814884701121],
            },
          },
          {
            type: "Feature",
            properties: {
              title: "警报2",
            },
            geometry: {
              type: "Point",
              coordinates: [99.19515576149941, 26.713646654711134],
            },
          },
          {
            type: "Feature",
            properties: {
              title: "警报3",
            },
            geometry: {
              type: "Point",
              coordinates: [123.74363825288785, 44.363694825734726],
            },
          },
        ],
      },
    };
  },
  mounted() {
    this.initMap();
    this.addGif();
  },
  methods: {
    // 初始化地图
    initMap() {
      this.map = new Map({
        target: "map",
        layers: [
          new TileLayer({
            source: new OSM(),
          }),
        ],
        view: new View({
          projection: "EPSG:4326",
          center: [104.912777, 34.730746],
          zoom: 4.5,
        }),
      });
    },
    // 使用Overlay添加GIF动态图标点位信息
    addGif() {
      let coordinates = this.getCoordinatesByGeojson(this.geojsonData);

      for (const i in coordinates) {
        let gif_span = document.createElement("span");

        document.documentElement.appendChild(gif_span);
        this.$nextTick(() => {
          this.markerPoint = new Overlay({
            position: coordinates[i],
            element: gif_span,
            positioning: "center-center",
          });
          this.map.addOverlay(this.markerPoint);
        });
      }
    },
    //根据geojson数据获取坐标集
    getCoordinatesByGeojson(geojsonData) {
      let coordinates = [];
      geojsonData.features.map((feature) => {
        coordinates = [...coordinates, feature.geometry.coordinates];
      });
      return coordinates;
    },
  },
};
</script>
<style lang='scss' >
.test {
  span {
    display: inline-block;
    width: 80px;
    height: 80px;
    border-radius: 50%;
    background: url("https://smart-garden-manage.oss-cn-chengdu.aliyuncs.com/gif.gif")
      no-repeat;
    background-size: 80px 80px;
  }
}
</style>

通过关键帧@keyframes

Vue中使用Openlayer实现加载动画效果

<template>
  <div class="test">
    <div id="map" ref="map" style="width: 100vw; height: 100vh"></div>
  </div>
</template>

<script>
import "ol/ol.css";
import { Map, View, Overlay } from "ol";
import TileLayer from "ol/layer/Tile";
import OSM from "ol/source/OSM";

export default {
  name: "gif",
  data() {
    return {
      map: {},
      overlay: {},
      point_overlay: {},
      geojsonData: {
        type: "FeatureCollection",
        features: [
          {
            type: "Feature",
            properties: {
              title: "警报1",
            },
            geometry: {
              type: "Point",
              coordinates: [91.48879670091165, 37.83814884701121],
            },
          },
          {
            type: "Feature",
            properties: {
              title: "警报2",
            },
            geometry: {
              type: "Point",
              coordinates: [99.19515576149941, 26.713646654711134],
            },
          },
          {
            type: "Feature",
            properties: {
              title: "警报3",
            },
            geometry: {
              type: "Point",
              coordinates: [123.74363825288785, 44.363694825734726],
            },
          },
        ],
      },
    };
  },
  mounted() {
    this.initMap();
    this.addGif();
  },
  methods: {
    // 初始化地图
    initMap() {
      this.map = new Map({
        target: "map",
        layers: [
          new TileLayer({
            source: new OSM(),
          }),
        ],
        view: new View({
          projection: "EPSG:4326",
          center: [104.912777, 34.730746],
          zoom: 4.5,
        }),
      });
    },
    // 使用Overlay添加GIF动态图标点位信息
    addGif() {
      let coordinates = this.getCoordinatesByGeojson(this.geojsonData);

      for (const i in coordinates) {
        let point_div = document.createElement("div");
        point_div.className = "css_animation";
        point_div.id = `coordinate_${i}`;
        document.documentElement.appendChild(point_div);

        this.$nextTick(() => {
          this.point_overlay = new Overlay({
            position: coordinates[i],
            element: point_div,
            positioning: "center-center",
          });
          this.map.addOverlay(this.point_overlay);
        });
      }
    },
    //根据geojson数据获取坐标集
    getCoordinatesByGeojson(geojsonData) {
      let coordinates = [];
      geojsonData.features.map((feature) => {
        coordinates = [...coordinates, feature.geometry.coordinates];
      });
      return coordinates;
    },
  },
};
</script>
<style lang='scss' >
.test {
  .css_animation {
    height: 50px;
    width: 50px;
    border-radius: 50%;
    background: rgba(255, 0, 0, 0.9);
    box-shadow: inset 0 0 8px red;
    transform: scale(0);
    animation: myfirst 3s;
    animation-iteration-count: infinite; //无限循环
  }
  @keyframes myfirst {
    to {
      transform: scale(2);
      background: rgba(0, 0, 0, 0);
      box-shadow: inset 0 0 50px rgba(255, 0, 0, 0);
    }
  }
}
</style>

既可加载动画，又可获取动画所在要素点的属性

Vue中使用Openlayer实现加载动画效果Vue中使用Openlayer实现加载动画效果

注意：该代码存在问题。目前只能要么点击获取属性，要么展示动画，而不能同时存在，还有待优化！

<template>
  <div class="test">
    <div id="map" ref="map" style="width: 100vw; height: 100vh"></div>
    <div
      id="popup"
      style="
        position: absolute;
        background-color: rgba(47, 57, 90, 0.678);
        bottom: 20px;
        left: 30px;
        border: 1px solid white;
        padding: 10px;
        width: 60px;
      "
    >
      {{ properties.title }}
    </div>
  </div>
</template>

<script>
import "ol/ol.css";
import { Map, View, Overlay } from "ol";
import { OSM, Vector as VectorSource } from "ol/source";
import { Vector as VectorLayer, Tile as TileLayer } from "ol/layer";
import GeoJSON from "ol/format/GeoJSON";

import Select from "ol/interaction/Select";
import { altKeyOnly, click, pointerMove } from "ol/events/condition";
import { Fill, Stroke, Style, Circle } from "ol/style";

export default {
  name: "gif",
  data() {
    return {
      map: {},
      layer: {},

      overlay: {},
      point_overlay: {},
      geojsonData: {
        type: "FeatureCollection",
        features: [
          {
            type: "Feature",
            properties: {
              title: "警报1",
            },
            geometry: {
              type: "Point",
              coordinates: [91.48879670091165, 37.83814884701121],
            },
          },
          {
            type: "Feature",
            properties: {
              title: "警报2",
            },
            geometry: {
              type: "Point",
              coordinates: [99.19515576149941, 26.713646654711134],
            },
          },
          {
            type: "Feature",
            properties: {
              title: "警报3",
            },
            geometry: {
              type: "Point",
              coordinates: [123.74363825288785, 44.363694825734726],
            },
          },
        ],
      },

      select: {},
      properties: {
        title: "",
      },
    };
  },
  mounted() {
    this.initMap();
    // this.addGif();//注释掉后，点击可获取feature属性
  },
  methods: {
    // 初始化地图
    initMap() {
      this.layer = new VectorLayer({
        source: new VectorSource({
          features: new GeoJSON().readFeatures(this.geojsonData),
        }),
      });
      this.map = new Map({
        target: "map",
        layers: [
          new TileLayer({
            source: new OSM(),
          }),
          this.layer,
        ],
        view: new View({
          projection: "EPSG:4326",
          center: [104.912777, 34.730746],
          zoom: 4.5,
        }),
      });

      this.select = new Select({
        condition: click, //单击选择
      });
      this.map.addInteraction(this.select);

      let overlayer_popup = new Overlay({
        element: document.getElementById("popup"),
        positioning: "center-center", //一定要加上，否则会有偏移
      });

      this.select.on("select", (e) => {
        let coordinate = e.mapBrowserEvent.coordinate; //获取选择的坐标

        let featureSelect = e.selected[0]; //选中的feature要素

        if (e.selected.length !== 0) {
          overlayer_popup.setPosition(coordinate);
          this.map.addOverlay(overlayer_popup);
        } else {
          overlayer_popup.setPosition("");
        }

        if (featureSelect) {
          this.properties = featureSelect.getProperties(); //获取当前要素的所有属性
          //设置选中的样式
          featureSelect.setStyle(
            new Style({
              image: new Circle({
                radius: 10,
                fill: new Fill({
                  //矢量图层填充颜色，以及透明度
                  color: "rgba(255,0,0,0.5)",
                }),
                stroke: new Stroke({
                  //边界样式
                  color: "rgba(100, 90, 209, 0.6)",
                  width: 3,
                }),
              }),
            })
          );
        }
      });

      // 设置鼠标划过矢量要素的样式
      this.map.on("pointermove", (e) => {
        const isHover = this.map.hasFeatureAtPixel(e.pixel);
        this.map.getTargetElement().style.cursor = isHover ? "pointer" : "";
      });
    },
    // 使用Overlay添加GIF动态图标点位信息
    addGif() {
      let coordinates = this.getCoordinatesByGeojson(this.geojsonData);

      for (const i in coordinates) {
        let point_div = document.createElement("div");
        point_div.className = "css_animation";
        point_div.id = `coordinate_${i}`;
        document.documentElement.appendChild(point_div);

        this.$nextTick(() => {
          this.point_overlay = new Overlay({
            position: coordinates[i],
            element: point_div,
            positioning: "center-center",
          });
          this.map.addOverlay(this.point_overlay);
        });
      }
    },
    //根据geojson数据获取坐标集
    getCoordinatesByGeojson(geojsonData) {
      let coordinates = [];
      geojsonData.features.map((feature) => {
        coordinates = [...coordinates, feature.geometry.coordinates];
      });
      return coordinates;
    },
  },
};
</script>
<style lang='scss' scoped>
.test {
}
</style>
<style lang='scss' >
.test {
  .css_animation {
    height: 50px;
    width: 50px;
    border-radius: 50%;
    background: rgba(255, 0, 0, 0.9);
    box-shadow: inset 0 0 8px red;
    transform: scale(0);
    animation: myfirst 3s;
    animation-iteration-count: infinite; //无限循环
  }
  @keyframes myfirst {
    to {
      transform: scale(2);
      background: rgba(0, 0, 0, 0);
      box-shadow: inset 0 0 50px rgba(255, 0, 0, 0);
    }
  }
}
</style>

到此这篇关于Vue+Openlayer加载动画的文章就介绍到这了,更多相关Vue Openlayer加载动画内容请搜索NICE源码以前的文章或继续浏览下面的相关文章希望大家以后多多支持NICE源码！
